BA-4B

by Andreasson
3.7
17

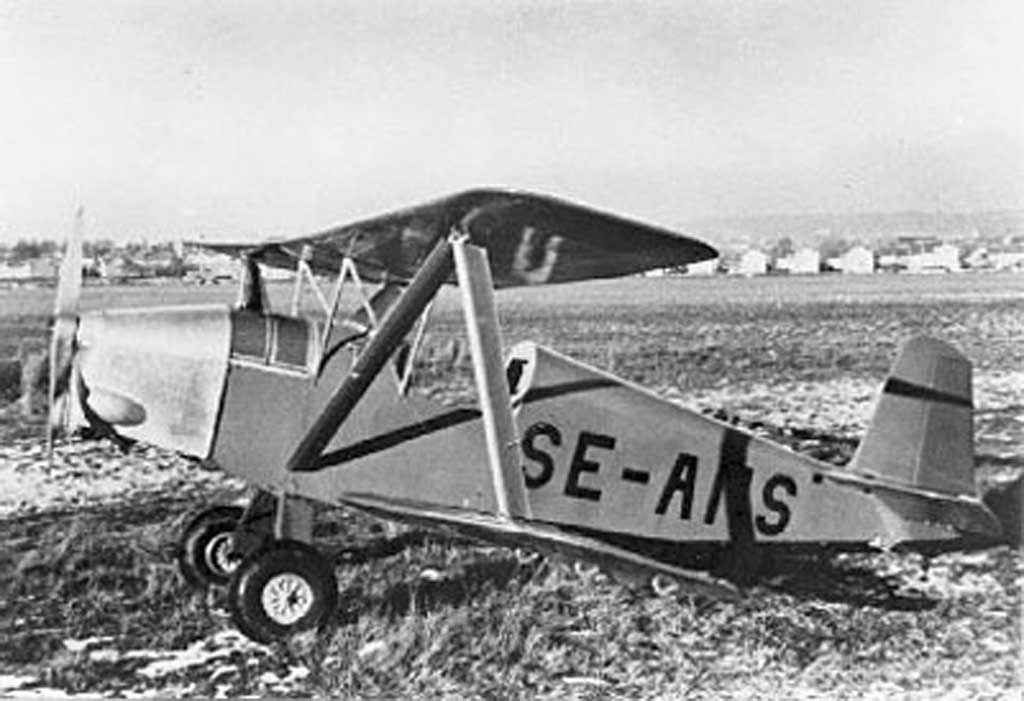

BA-4B - Photo #1

Homebuilt version of the 1944 BA-4. The BA-4B first flew in 1966.

"The Andreasson BA-4B was a single-seat aerobatic biplane marketed for homebuilding.

Design and development
It was based on Andreasson's pre-war BA-4 revised to take advantage of more modern construction techniques, such as the use of sheet metal in place of the original's all-wood structure. It was a single-bay, staggered, equal-bay biplane with fixed tailwheel undercarriage. It was offered in the UK by Crosby Aviation and in the US by Larry Karp as the Canary Hawk."

Source: wikipedia.org
Photo: hobby.se, SFF Bildarkiv

Specifications

Empty weight:
728 lbs (330 kg)
MTOW:
992 lbs (450 kg)
Stall speed:
52 kts (60 mph) (96 kph)
Cruise speed:
113 kts (130 mph) (209 kph)
VNE:
130 kts (150 mph) (241 kph)
Take-off distance:
886 ft (270 m)
Landing distance:
1526 ft (465 m)
Engine:
Continental O-200 100 hp

Watch 1 Video about the BA-4B

PHOTOS

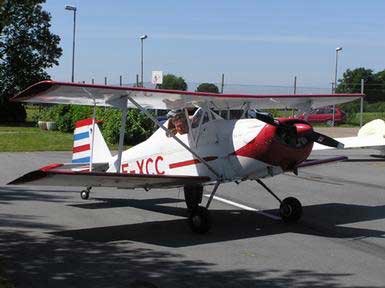

BA-4B - Photo #2

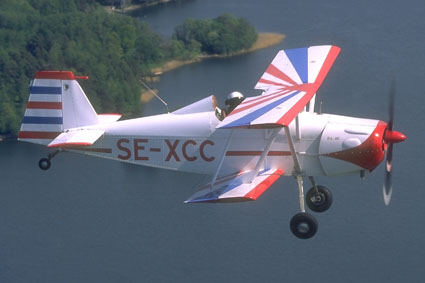

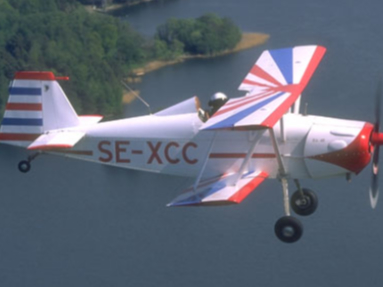

BA-4B - Photo #3
