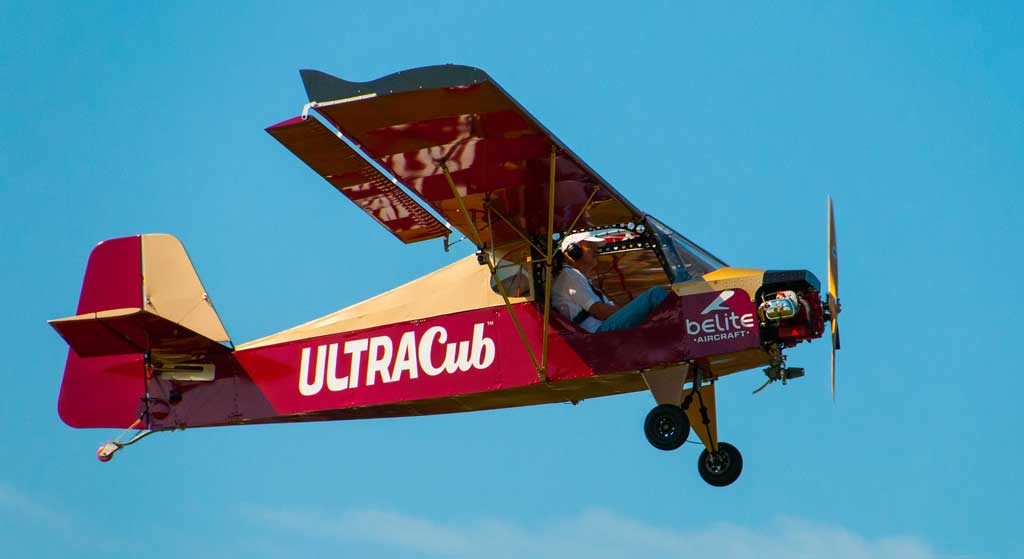

Belite UltraCub - Photo #1

The UltraCub ultralight is an ultralight airplane produced by Belite aircraft in Wichita Kansas.

The UltraCub can be purchased as a kit or a ready-to-fly airplane. If you buy it as a kit you can expect the build time to be somewhere around 200hrs + time for fabric and paint.

The UltraCub can be flown as a tail-dragger, tri-cycle and on floats. Yes you heard right, an ultralight on floats (SeaLite).

One great standard feature of the UltraCub is its folding wings. This makes the aircraft easy to store, you might even keep it in your garage. Lots of engine options are available, choose from 28-50hp 2- and 4-stroke engines. The 4-stroke version uses 1/2 VW engine.

Since the UltraCub is a 3-axis airplane with standard airplane flight controls it requires real pilot skills, especially if you fly the tail-dragger version where landing/take-off can be a bit tricky if you havn't flown a tail-dragger before.

The UltraCub kit prices were 2015:
8495 USD / 7585 EUR

Photos: Belite Aircraft / beliteaircraft.com

Specifications

Empty weight:
278 lbs (126 kg)
MTOW:
550 lbs (249 kg)
Stall speed:
24 kts (28 mph) (44 kph)
Cruise speed:
54 kts (62 mph) (100 kph)
VNE:
63 kts (72 mph) (117 kph)
Climb:
700 ft/min (3.6 m/s)
Take-off distance:
500 ft (152 m)
Landing distance:
500 ft (152 m)
Engine:
28-50hp 2-stroke or 4-stroke 1/2VW engine with 37-45hp
Fuel consumption:
2,5 GPH (7.6 LPH)
For sale for: USD 22,995 / EUR 21,155

Watch 1 Video about the Belite UltraCub

PHOTOS

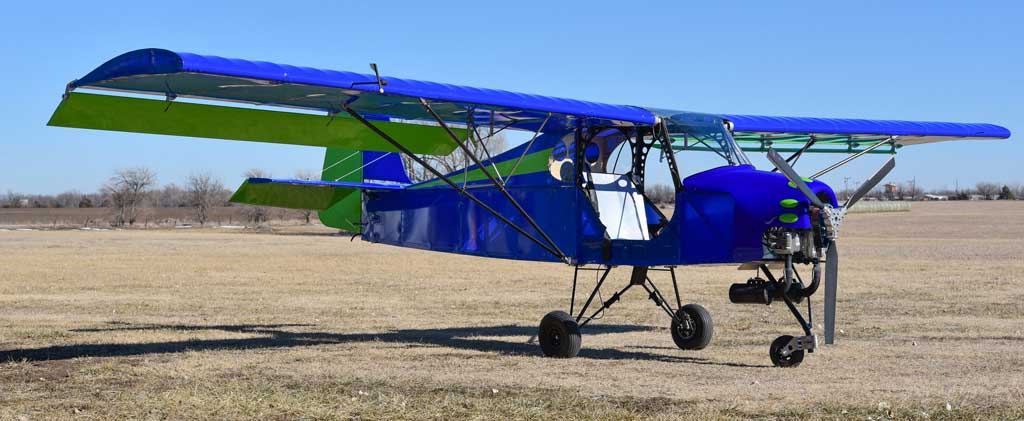

Belite UltraCub - Photo #2

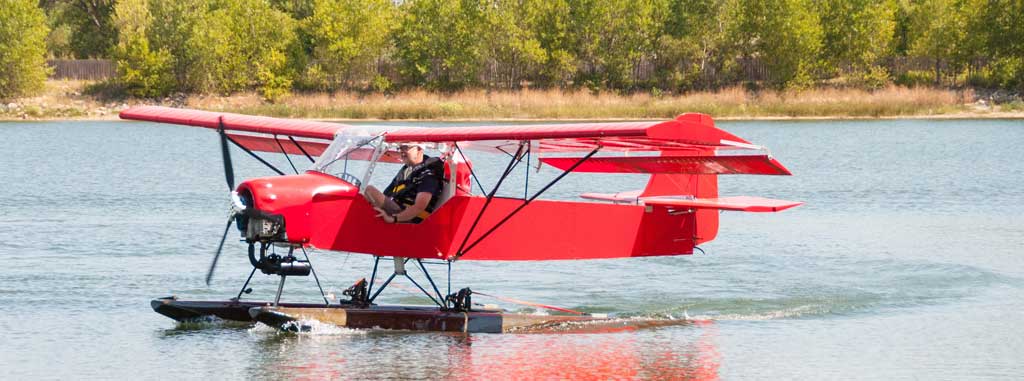

Belite UltraCub - Photo #3

RELATED RESOURCES

  • Belite Enterprises LLC

    Belite Enterprises LLC

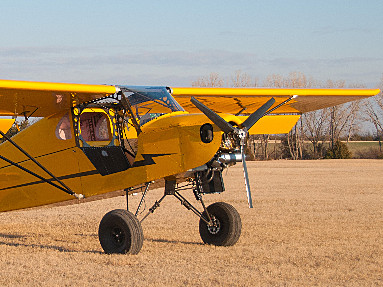

    Manufacturer of the ProCub Lite, UltraCub series aircraft. Belite is based in Wichita, Kansas and was founded by James and Kathy Wiebe in 2009. The company specializes in the design and manufacture of ultralight aircraft...
