Jodel D120

by Jodel
3.1
8

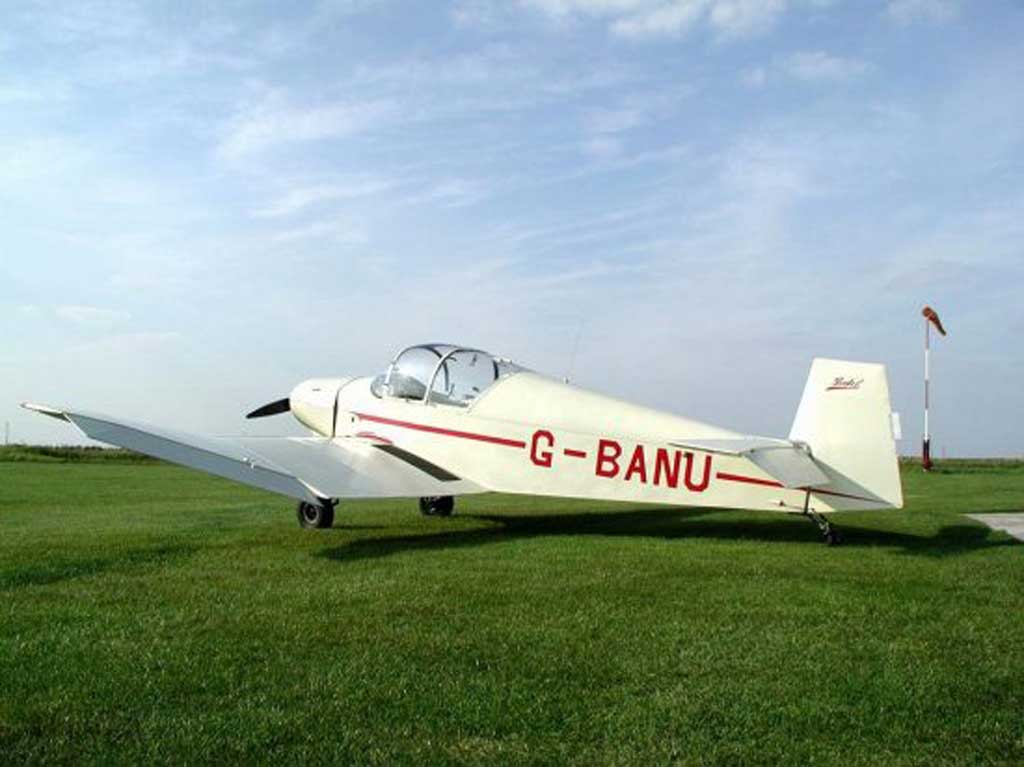

Jodel D120 - Photo #1
Specifications | More by Jodel | Buy & Sell | Top-10 aircraft | All aircraft
Show MoreLOW WING TAIL WHEEL

The Jodel D120 is a French two-seat monoplane and it is an all wood aircraft construction.

The D120 is a variant of the D11. Other variants of the D120 exists, see table below.

D120 - Wassmer built D117 named the Paris-Nice, 337 built Powerplant Continental C90. D120A (with airbrakes) D120R ((Remorqueur) Glider Tug) D120AR (Glider Tug with airbrakes)

The Jodel is available in many variants and popular as a homebuilt aircraft.

Photo: www.jodelgallery.org.uk

Specifications

MTOW:
1433 lbs (650 kg)
Stall speed:
28 kts (32 mph) (52 kph)
Cruise speed:
95 kts (109 mph) (176 kph)
VNE:
138 kts (159 mph) (256 kph)
Take-off distance:
656 ft (200 m)
Engine:
Continental C90
Fuel consumption:
6 GPH (22.7 LPH)

PHOTOS

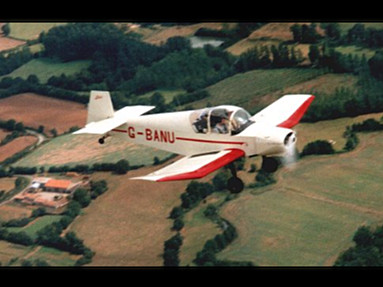

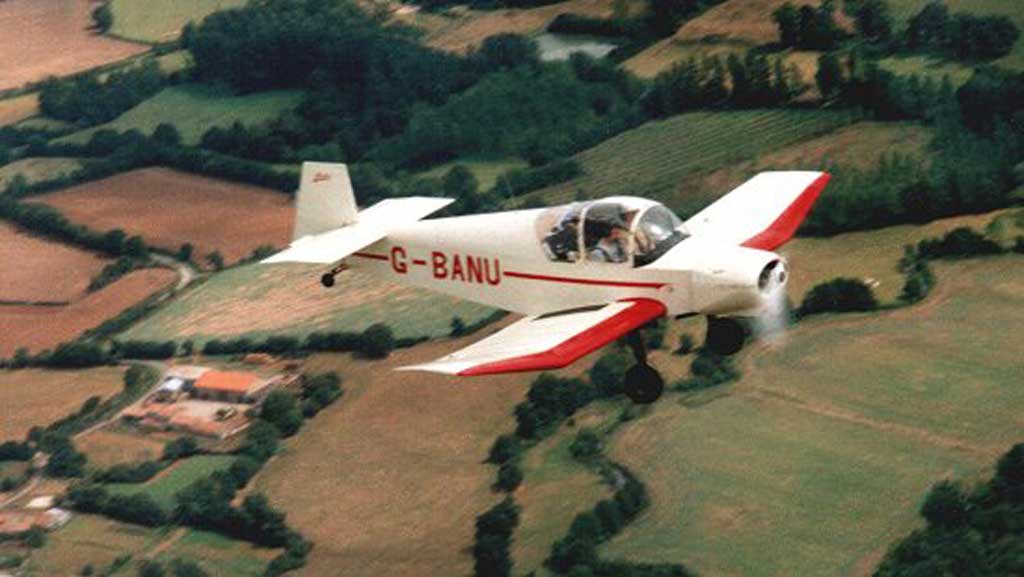

Jodel D120 - Photo #2
Jodel D120 - Photo #3
