Fascination F80/F100

by UL-JIH s.r.o.
4.0
5

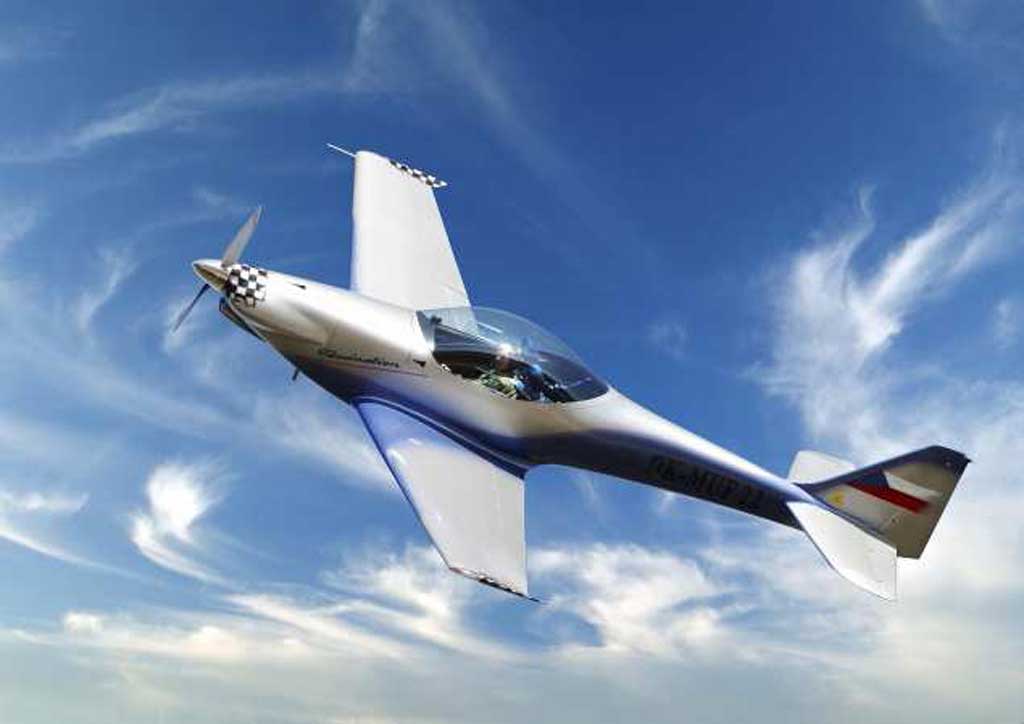

Fascination F80/F100 - Photo #1

The Czech Kaplice company UL-Jih has successfully completed testing the aircraft Fascination F100 with unbelievable results. On December 12, 2007, the craft was weighed in the presence of the chief inspector, the legendary German engineer Otto Bartsch, and a representative of the French company J.F. Boudet. The aircraft, together with adjustable propeller and retractable landing gear in operational mode, weighed a remarkable 294 Kg. This fact leads to the final certification for the French and German market, as well as proving that an aircraft with an airspeed of over 250 km/hr can be manufactured according to regulations.

The hull also passed the stress test with an overall burden of 3265 kg. In July of 2007 the wings were subjected to a fracture test with a 2100 kg load. In 2008 the aircraft will be ready for the French and German market.

Specifications

Empty weight:
661 lbs (300 kg)
MTOW:
1041 lbs (472 kg)
Stall speed:
35 kts (40 mph) (65 kph)
Cruise speed:
132 kts (152 mph) (244 kph)
VNE:
146 kts (168 mph) (270 kph)
Climb:
1181 ft/min (6 m/s)
Glide ratio:
10
Take-off distance:
689 ft (210 m)
Landing distance:
1148 ft (350 m)
Engine:
Rotax 912 UL/ 912 ULS
Fuel consumption:
3 GPH (11.4 LPH)
For sale for: USD 80,406 / EUR 73,973
