JA 177 Evolution I

by Aerodynos De Colombia S.A.
4.1
8

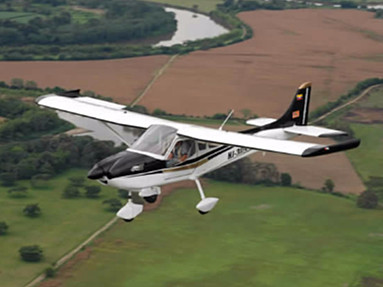

JA 177 Evolution I - Photo #1
Specifications | Video | Buy & Sell | Top-10 aircraft | All aircraft
Show MoreHIGH WING NOSE WHEEL

The JA177 Evolution II is a twin seat single engine, trotted high wing, totally metal structure in 6061 T6 Aluminum and 4130 Cromoly steel with tricycle fixed landing gear and steerable nose gear.

Source: aerodynosdecolombia.com

Specifications

Empty weight:
584 lbs (265 kg)
MTOW:
1091 lbs (495 kg)
Stall speed:
31 kts (36 mph) (57 kph)
Cruise speed:
105 kts (121 mph) (194 kph)
VNE:
130 kts (150 mph) (241 kph)
Glide ratio:
13
Take-off distance:
197 ft (60 m)
Landing distance:
394 ft (120 m)
Engine:
100HP

Watch 1 Video about the JA 177 Evolution I

PHOTOS

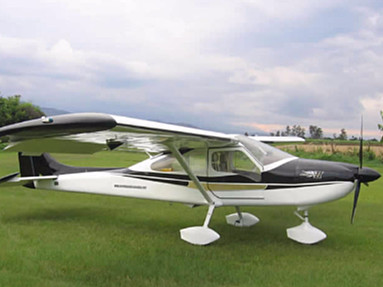

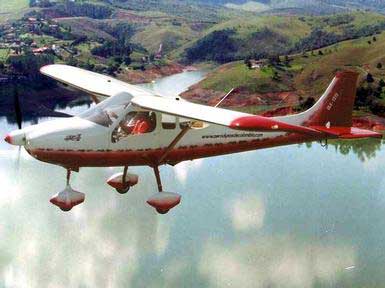

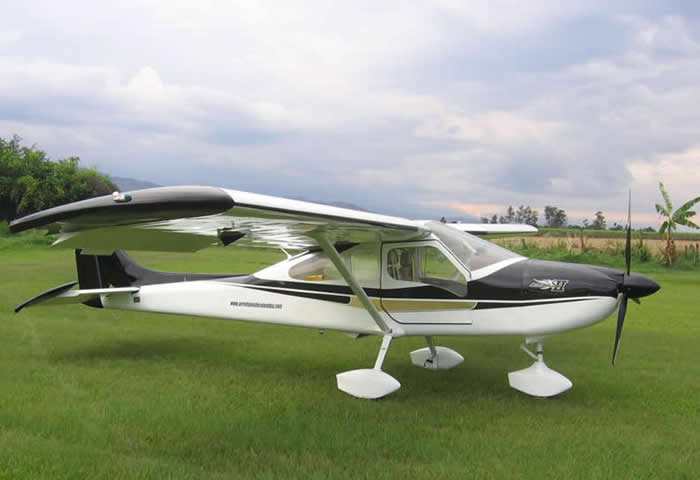

JA 177 Evolution I - Photo #2
