Jabiru ST3 UL Calypso

by Jabiru Aircraft
3.6
7

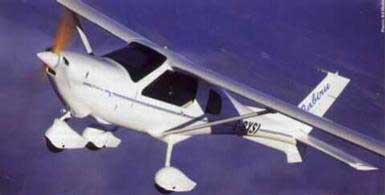

Jabiru ST3 UL Calypso - Photo #1
Specifications | Video | More by Jabiru Aircraft | Buy & Sell | Top-10 aircraft | All aircraft
Show MoreCOMPOSITE HIGH WING NOSE WHEEL

The New Jabiru Calypso has larger tail fin and elevator than the older Jabiru UL ST3. It has also winglets and higher cruise speed, about 95-100 knots.

The Jabiru is an all fiberglass construction. It is powered by the Jabiru opposed air cooled four cylinder with a direct drive propeller.

The Jabiru is a well known aircraft in the ultralight circles.

Specifications

Empty weight:
558 lbs (253 kg)
MTOW:
992 lbs (450 kg)
Stall speed:
35 kts (40 mph) (65 kph)
Cruise speed:
85 kts (98 mph) (157 kph)
VNE:
116 kts (133 mph) (215 kph)
Climb:
1000 ft/min (5.1 m/s)
Glide ratio:
14
Take-off distance:
1181 ft (360 m)
Landing distance:
1181 ft (360 m)
Engine:
Jabiru
Fuel consumption:
4 GPH (15.1 LPH)

Watch 1 Video about the Jabiru ST3 UL Calypso
