Lake Sport Mermaid

by Czech Aircraft Works
3.5
25
Lake Sport Mermaid - Photo #1

Lake Sport Mermaid

The all-new Mermaid is the first amphibian to be designed especially to comply with the FAA's new Light Sport Aircraft rules. It is also the first new certified single-engine amphibian to reach production in decades.

The design parameters were challenging: make a certifiable, roomy amphibian that will fit the LSA rules (2-place, 1235 pounds gross, low stall speed), and that will be affordable, reliable, and fun to fly; then give it the speed and range to be practical as a transportation device, and dual controls, for training and peace of mind. The Mermaid does it all, and more.

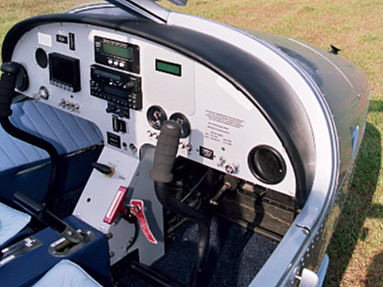

Of conventional all-metal design, the Mermaid is built by European craftsmen, with US-sourced materials. Its five watertight compartments are built with EDO-style pump-outs. The slipper-clutch Rotax 912 ULS (914 also available) puts out 100 reliable horsepower while burning well under 5 gph. The useful load is over 500 pounds, and the large baggage area is located nearly on the CG, to make its capacity truly usable. The wide cockpit is comfortable; and it affords a large panel area.

Source: czaw.cz/pages/mermaid.htm

Specifications

Empty weight:
727 lbs (330 kg)
MTOW:
1235 lbs (560 kg)
Stall speed:
35 kts (40 mph) (65 kph)
Cruise speed:
100 kts (115 mph) (185 kph)
VNE:
115 kts (132 mph) (213 kph)
Climb:
1000 ft/min (5.1 m/s)
Take-off distance:
600 ft (183 m)
Landing distance:
600 ft (183 m)
Engine:
Rotax 912 (ULS)

PHOTOS

Lake Sport Mermaid - Photo #2
Lake Sport Mermaid - Photo #3
