MT03 Turbo Gyrocopter

by AutoGyro GmBh
4.2
15

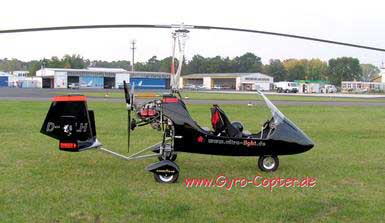

MT03 Turbo Gyrocopter - Photo #1

The MT-03 is a two-seat tandem autogyro.

The tail unit, nacelle, propeller and the main landing gear are manufactured from composite materials. The airframe and accessories fabricated from stainless steel.

Specifications

Two-seat tandem autogyro Airframe and accessories fabricated from stainless steel Engine - Rotax 912 ULS 100 HP with 1:2.43 reduction gearbox and slipper clutch High-grade stainless steel exhaust system. Cockpit, seats, landing gear, 3-blade propeller and tail unit fabricated from composite materials Hydraulic main wheel disc brakes with parking brake. Pneumatic trim and rotor brake. 2 Water radiators Oil thermostat regulates the oil temp at 90 degrees. 69 liter Plastic fuel tank with integrated drain. Autogyro extruded aluminum rotor system featuring NACA 8H12 NACA aero foil Engine-driven pre-rotator Full size windscreen for the passenger Dual controls

Specifications

Empty weight:
450 lbs (204 kg)
MTOW:
992 lbs (450 kg)
Cruise speed:
81 kts (93 mph) (150 kph)
VNE:
89 kts (102 mph) (165 kph)
Climb:
1000 ft/min (5.1 m/s)
Take-off distance:
164 ft (50 m)
Landing distance:
33 ft (10 m)
Engine:
Rotax 914, 912
Fuel consumption:
5 GPH (18.9 LPH)
For sale for: USD 57,893 / EUR 53,261

Watch 1 Video about the MT03 Turbo Gyrocopter
