STOL CH 750

by Zenith Aircraft Company - Zenair
4.0
27

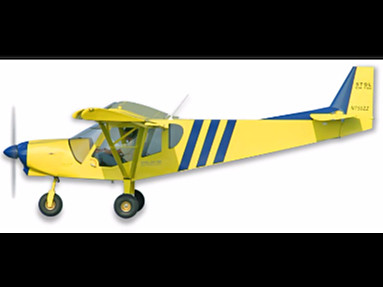

STOL CH 750 - Photo #1
Specifications | Video | More by Zenith Aircraft Company - Zenair | Buy & Sell | Top-10 aircraft | All aircraft
Show MoreHIGH WING NOSE WHEEL STOL

A STOL aircraft available in as a kit from Zenair; Assembly assistance available from most Zenair distributors in Europe.

Other engine options: Rotax 912ULS, Continental O-200, Jabiru 3300, etc.

Makes great float-plane

See www.zenair.com for nearest Zenair dealer.

Specifications

Empty weight:
775 lbs (352 kg)
MTOW:
1440 lbs (653 kg)
Stall speed:
30 kts (35 mph) (56 kph)
Cruise speed:
87 kts (100 mph) (161 kph)
VNE:
109 kts (125 mph) (202 kph)
Climb:
1000 ft/min (5.1 m/s)
Glide ratio:
8
Take-off distance:
300 ft (91 m)
Landing distance:
400 ft (122 m)
Engine:
UL-Power UL350iS
Fuel consumption:
4 GPH (15.1 LPH)
For sale for: USD 70,000 / EUR 64,400

Watch 1 Video about the STOL CH 750

PHOTOS

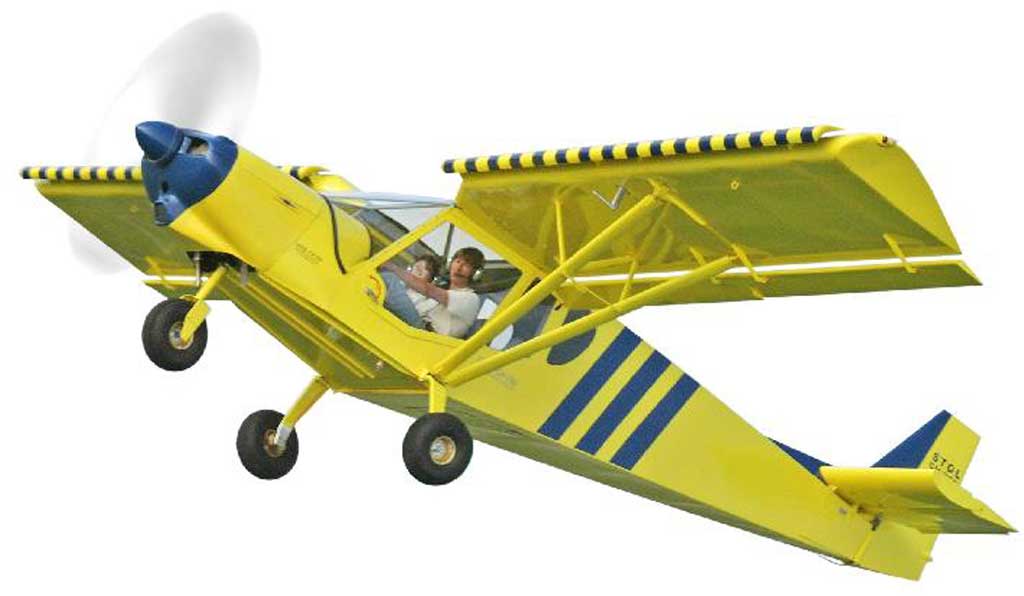

STOL CH 750 - Photo #2
